Create a Load Balancer With Ingress Using Terraform to EKS Cluster.

Github Repository

Prerequisite

Before we proceed and deploy the sample application using Terraform, there are a few commands or tools you need to have in the server where you will be creating the cluster from.

1. awscli - aws-cli/2.12.1 Python/3.11.3

2. go version go1.18.9 linux/amd64

3. Terraform v1.5.0

4. kubectl - Client Version: v1.23.17-eks

5. helm - v3.8.0

Assumptions

The following details makes the following assumptions.

You have aws cli configured

You have created s3 bucket that will act as the backend of the project.

You have setup the EKS cluster as described in this project Setting up EKS Cluster with Terraform, Helm and a Load balancer

Quick Setup

Clone the repository:

git clone https://github.com/Skanyi/terraform-projects.git

Change directory;

cd applications/sample-application-nginx

Update the backend.tf and update the s3 bucket and the region of your s3 bucket. Update the profile if you are not using the default profile.

Update the variables.tf profile variable if you are not using the default profile.

Update the secret.tfvars file with the output values of the Setting up EKS with Terraform, Helm and a Load balance

Format the the project

terraform fmt

Initialize the project to pull all the moduels used

terraform init

Validate that the project is correctly setup.

terraform validate

Run the plan command to see all the resources that will be created

terraform plan --var-file="secret.tfvars

When you ready, run the apply command to create the resources.

terraform apply --var-file="secret.tfvars

Detailed Setup Steps.

When the above setup is done, we are now ready to deploy a sample application to test if everything is working as expected. In this step, we are going to create the following:

  1. Namespace - Create a namespace where we are going to deploy the sample application.

     resource "kubernetes_namespace" "sample-application-namespace" {
 metadata {
     annotations = {
     name = "sample-application"
     }

     labels = {
     application = "sample-nginx-application"
     }

     name = "sample-application"
 }

  2. Policy - Create a policy that we are going to attache to the role that the sample application is going to use.

     module "sample_application_iam_policy" {
 source = "terraform-aws-modules/iam/aws//modules/iam-policy"

 name        = "${var.env_name}_sample_application_policy"
 path        = "/"
 description = "sample Application Policy"

 policy = <<EOF
 {
 "Version": "2012-10-17",
 "Statement": [
     {
     "Action": [
         "ec2:Describe*"
     ],
     "Effect": "Allow",
     "Resource": "*"
     }
 ]
 }
 EOF
 }

  3. Role - Create a role that we are going to annotate the Service Account used by the sample application with.

     module "sample_application_role" {
 source = "terraform-aws-modules/iam/aws//modules/iam-role-for-service-accounts-eks"

 role_name = "${var.env_name}_sample_application"
 role_policy_arns = {
     policy = module.sample_application_iam_policy.arn
 }

 oidc_providers = {
     main = {
     provider_arn               = var.oidc_provider_arn
     namespace_service_accounts = ["sample-application:sample-application-sa"]
     }
 }
 }

  4. Service Account - Create a service account that the Sample application is going to use to get access to different AWS services.

     resource "kubernetes_service_account" "service-account" {
 metadata {
     name      = "sample-application-sa"
     namespace = kubernetes_namespace.sample-application-namespace.metadata[0].name
     labels = {
     "app.kubernetes.io/name" = "sample-application-sa"
     }
     annotations = {
     "eks.amazonaws.com/role-arn"               = module.sample_application_role.iam_role_arn
     "eks.amazonaws.com/sts-regional-endpoints" = "true"
     }
 }
 }

  5. Deployment - We create a simple deplyment using resource “kubernetes_deployment_v1” and nginx as the image for our container.

     resource "kubernetes_deployment_v1" "sample_application_deployment" {
 metadata {
     name      = "sample-application-deployment"
     namespace = kubernetes_namespace.sample-application-namespace.metadata[0].name
     labels = {
     app = "nginx"
     }
 }

 spec {
     replicas = 2

     selector {
     match_labels = {
         app = "nginx"
     }
     }

     template {
     metadata {
         labels = {
         app = "nginx"
         }
     }

     spec {
         service_account_name = kubernetes_service_account.service-account.metadata[0].name
         container {
         image = "nginx:1.21.6"
         name  = "nginx"

         resources {
             limits = {
             cpu    = "0.5"
             memory = "512Mi"
             }
             requests = {
             cpu    = "250m"
             memory = "50Mi"
             }
         }

         liveness_probe {
             http_get {
             path = "/"
             port = 80

             http_header {
                 name  = "X-Custom-Header"
                 value = "Awesome"
             }
             }

             initial_delay_seconds = 3
             period_seconds        = 3
         }
         }
     }
     }
 }
 }

  6. Serivice - We create a simple service that exposes the above deployment.

     resource "kubernetes_service_v1" "sample_application_svc" {
 metadata {
     name      = "sample-application-svc"
     namespace = kubernetes_namespace.sample-application-namespace.metadata[0].name
 }
 spec {
     selector = {
     app = "nginx"
     }
     session_affinity = "ClientIP"
     port {
     port        = 80
     target_port = 80
     }

     type = "NodePort"
 }
 }

  7. Ingress - Finally we create an ingress that will be used to create the application load balancer

     resource "kubernetes_ingress_v1" "sample_application_ingress" {
 metadata {
     name      = "sample-application-ingress"
     namespace = kubernetes_namespace.sample-application-namespace.metadata[0].name
     annotations = {
     "alb.ingress.kubernetes.io/scheme" = "internet-facing"
     }
 }

 wait_for_load_balancer = "true"

 spec {
     ingress_class_name = "alb"
     default_backend {
     service {
         name = "sample-application-svc"
         port {
         number = 80
         }
     }
     }

     rule {
     http {
         path {
         backend {
             service {
             name = "sample-application-svc"
             port {
                 number = 80
             }
             }
         }

         path = "/app1/*"
         }

     }
     }

     tls {
     secret_name = "tls-secret"
     }
 }
 }

When the above is done, use the following commands to confirm if the ingress was created succesfully.

kubectl get ingress -n sample-application

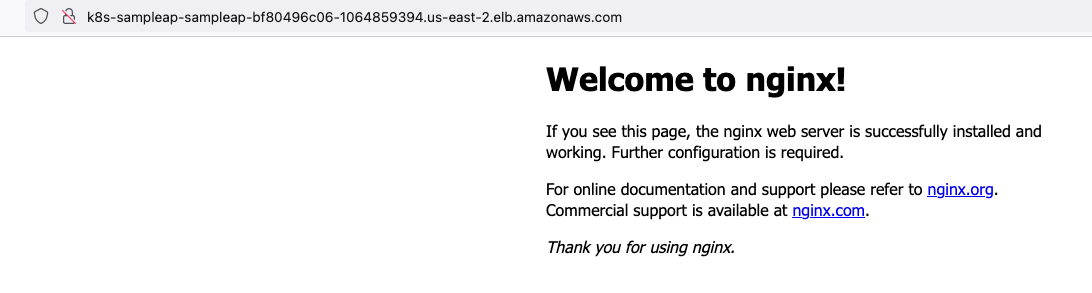

Access the application on the browser using the application load balancer address shown from by the above command.

Kubernetes Ingress Loadbalancer

Cleanup the Resources we Created

When we are done testing the setup and don’t require the resources created anymore, we can use the steps below to remove them.

1.1 terraform init

1.2 terraform destroy

Next Steps

I will be adding monitoring using Prometheus and Grafana
